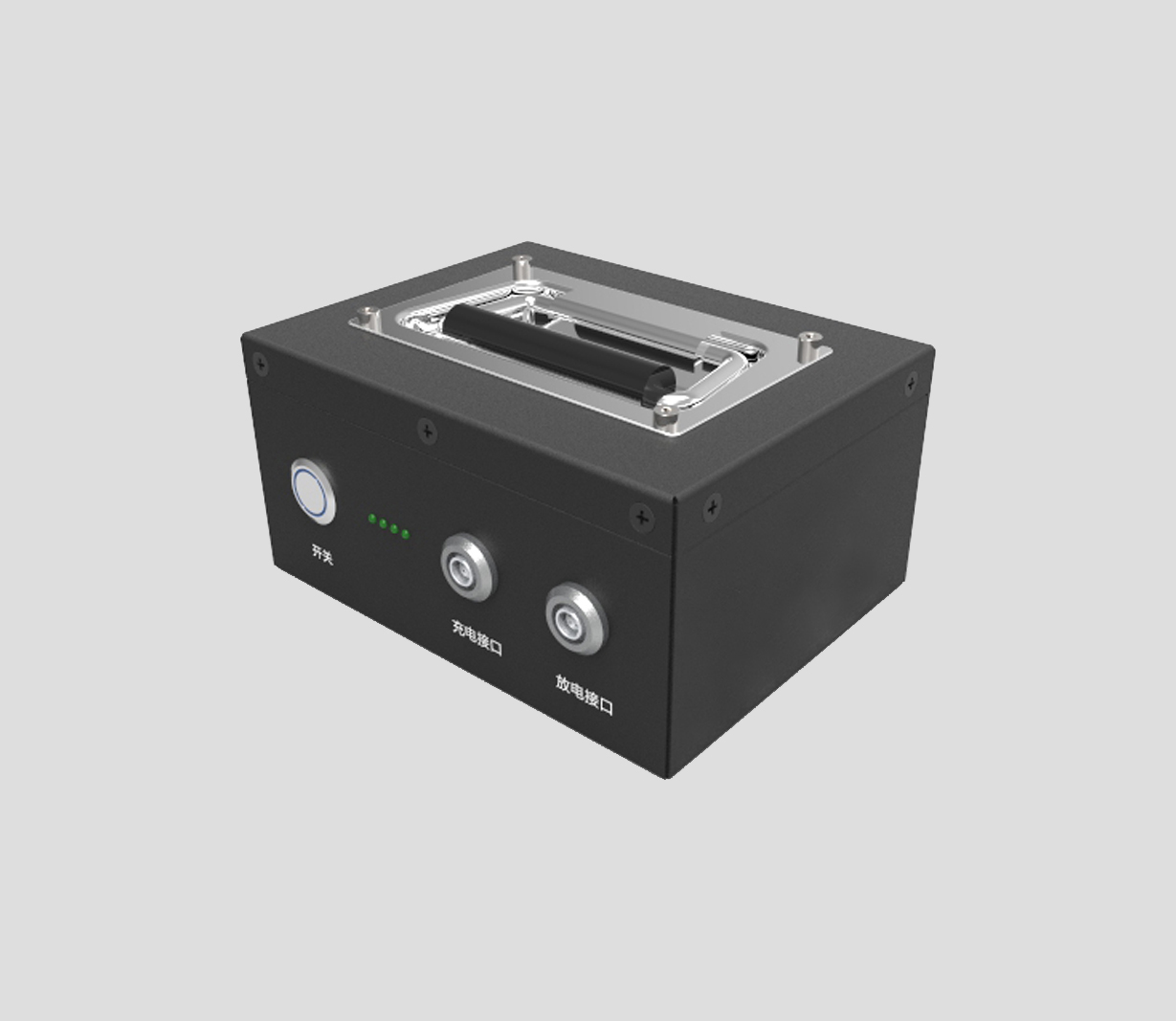

24V/13Ah backpack laser battery
Cell model: 18650/3.6V/3350mAh
Cell specifications: 18650/7S4P/24V/13Ah
Nominal voltage: 24V regulated
Nominal capacity: 13Ah
Charging voltage: 29.4V
Charging current: ≤(?)6A
Discharge current: 10A
Instant discharge current: 15A
Discharge cut-off voltage: 24V stabilized voltage
Battery size (Max): 170×(?)130×(?)85mm
Battery shell: cold rolled sheet metal
Charging temperature: 0～(?)45℃(?)
Discharge temperature: -40～(?)60℃(?)
Storage temperature: -20～(?)40 ℃(?)
Lithium battery protection: short circuit protection, overcharge protection, over discharge protection, over current protection, temperature protection, equalization, etc.
Application field: track maintenance laser
Product features: shockproof and waterproof: the cold-rolled sheet metal shell is filled with shockproof structure design to meet the requirements of high safety and high reliability;
Stabilized output: Through the DC-DC circuit, it outputs a regulated 24V voltage to ensure the power demand of precision equipment.
Quick connection: using push-pull self-locking aviation connector, fast, safe and reliable;
Power display: through 4 LED lights, the remaining power of the battery can be displayed intuitively.
The battery pack has a high cycle life and conforms to the value concept of low carbon, energy saving and environmental protection;
